FiberOptions

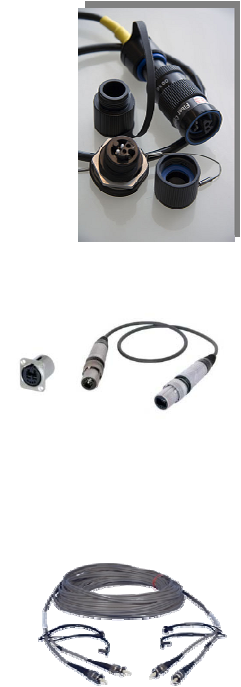

Tacticalgrademilitaryfiber(TAC‐4)

Usedforliveproductionapplications(P/NTFC‐0000‐04).Weighing8.4lbs.(12.6kg)for(300)feet,thiscablecontains

(4)fibersandthereforeitiscapableofcarryingthesignalsof(2)systemsonasinglecable.TheTAC‐4connectors

arehermaphroditicandcanbeconnectedto

oneanother.Multimodefibercantransportsignalsupto2km(1.25

miles).



NeutrikOpticalCon

Fiber

Thisfibercablecontains(2)fibersandisalsoatacticalgradefiber

(P/NTFC‐0000‐02OC).



PVCfiber

PVCduplexfibercontains(2)fibers.Plenumratedfiberisalsoavailable.Theinstallercan

terminatethefiber

themselves,orFiberplexcansupplyitpre‐terminated.Thisfiberisalsoavailablewithastrainreli ef and

“pullingeye”whichreducesonsitelabor.



Neutrik OpticalCon

Fiber Cable & Panel

Mount Connecto

Plenum Install Fiber

TAC-4
